ReNoV: Projected Representation Conditioning for High-fidelity Novel View Synthesis

arXiv 2026

Minseop Kwak^* Minkyung Kwon^* Jinhyeok Choi^* Jiho Park Seungryong Kim^†

KAIST AI

*: Equal contribution †: Corresponding author

TL;DR

ReNoV leverages powerful feature representations as prompts for diffusion-based novel view synthesis. By projecting these representations into 3D, we achieve high-fidelity reconstruction and plausible inpainting.

Abstract

We propose a novel framework for diffusion-based novel view synthesis in which we leverage external representations as conditions, harnessing their geometric and semantic correspondence properties for enhanced geometric consistency in generated novel viewpoints. First, we provide a detailed analysis exploring the correspondence capabilities emergent in the spatial attention of external visual representations. Building from these insights, we propose a representation-guided novel view synthesis through dedicated representation projection modules that inject external representations into the diffusion process, a methodology named ReNoV (Representation-guided Novel View synthesis). Our experiments show that this design yields marked improvements in both reconstruction fidelity and inpainting quality, outperforming prior diffusion‐based novel‐view methods on standard benchmarks and enabling robust synthesis from sparse, unposed image collections.

Motivation & Analysis

Unlike previous methods, we interpret novel view synthesis as a warping-and-inpainting problem, requiring models to excel at two tasks: accurate reconstruction of visible regions and consistent inpainting of occluded regions. This motivates the search for a conditioning representation that simultaneously encodes semantic awareness and geometric correspondence.

Cross-view attention maps of the denoising network. A query pixel (blue dot) is chosen in the warped target view. Inpainting: the wheel is absent in the warped view, so attention shifts to the corresponding wheels in the references. Reconstruction: the suitcase edge is visible, so attention concentrates on the geometrically aligned edges.

Correspondence Capability Probing

We evaluate cross-view similarity to assess geometric correspondence across layers of different visual backbones (VGGT, DA3, DINOv2).

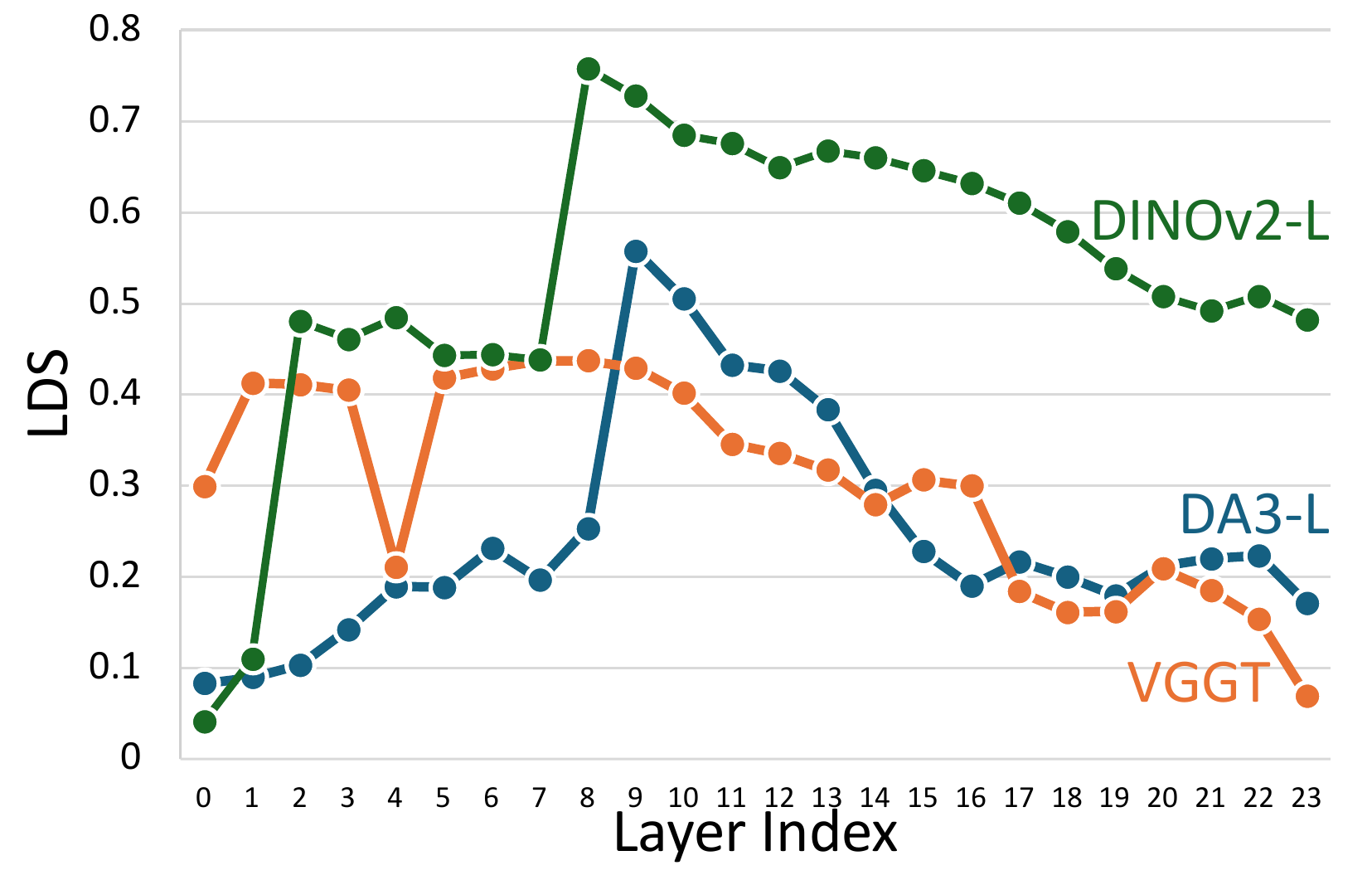

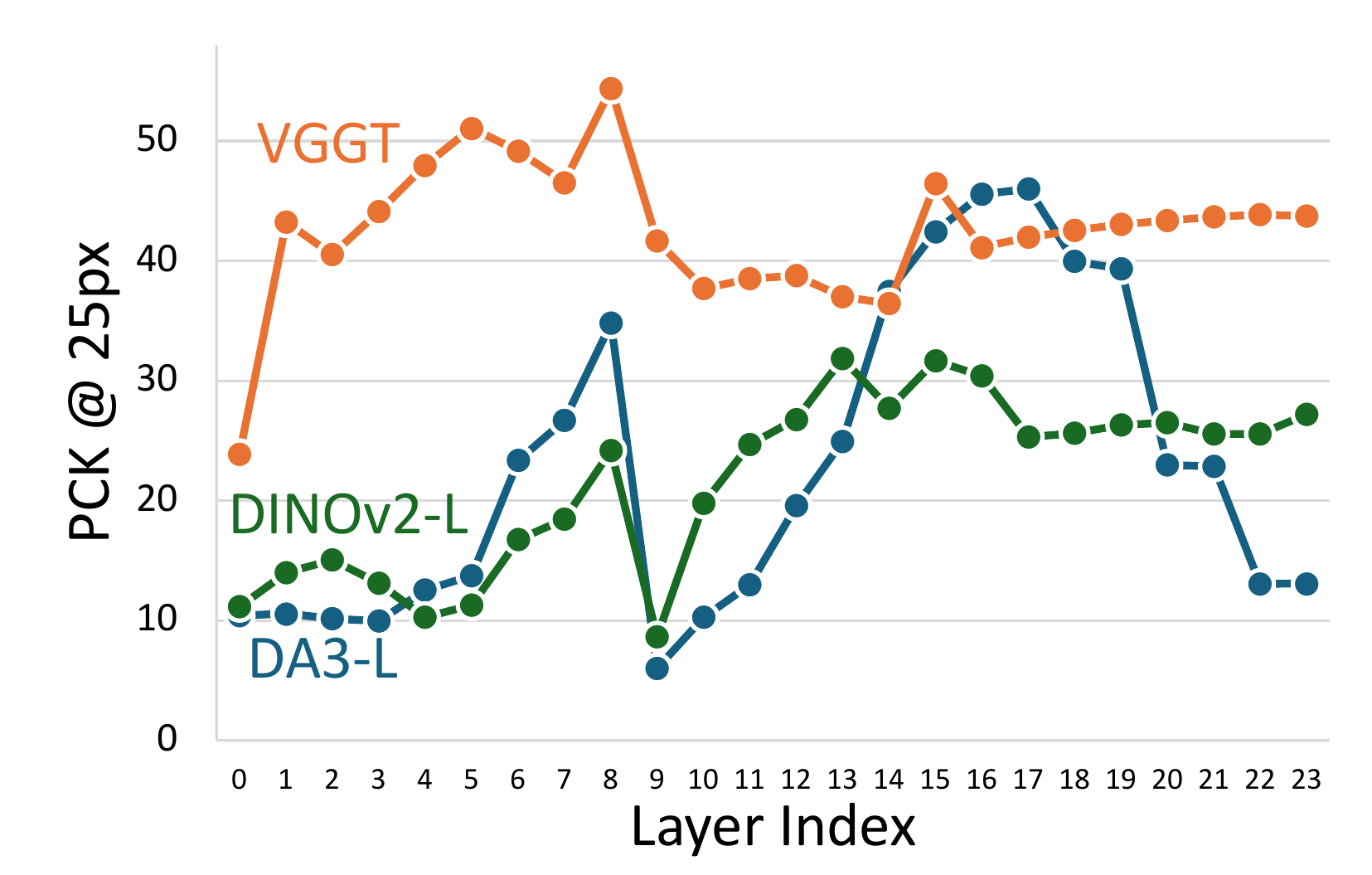

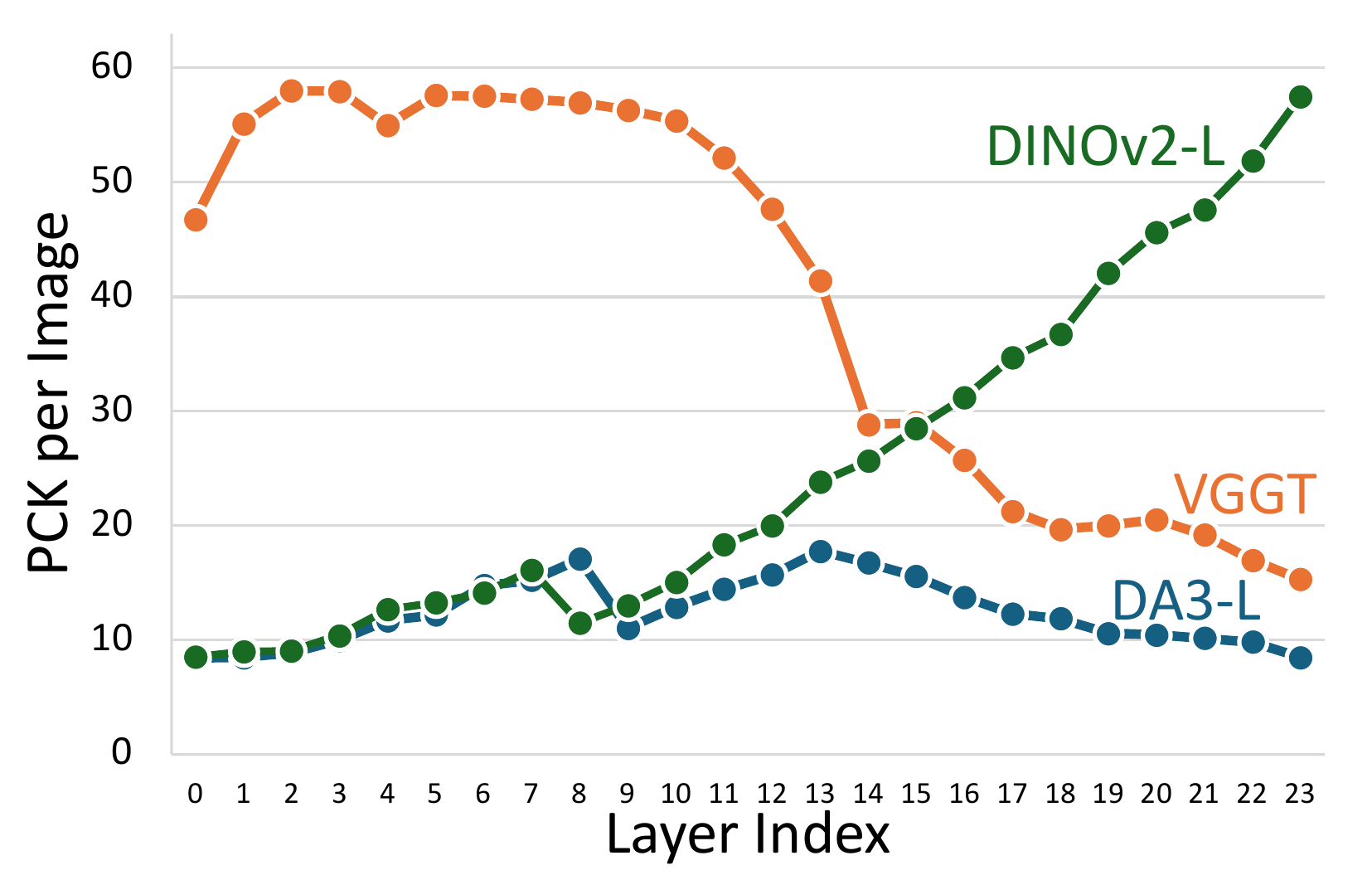

Analysis of visual foundation models. (Left) Geometric correspondence, (Center) Semantic correspondence, & (Right) Local vs. Distant Similarity across feature layers.

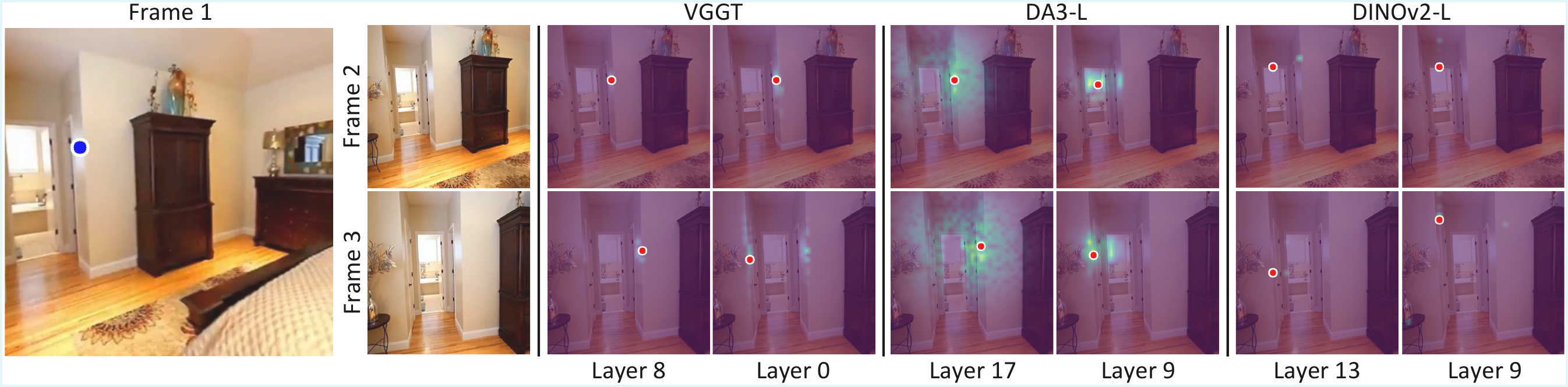

Geometric correspondence visualization. Deeper layers of VGGT and DA3-L accurately identify geometrically corresponding locations across views, while DINOv2 often attends to semantically similar but geometrically incorrect regions.

Reconstruction Capability Probing

Building on our geometric correspondence analysis, we evaluate the intermediate features' capabilities for reconstruction and inpainting. The optimal feature representation should encapsulate multi-view semantic and geometric information.

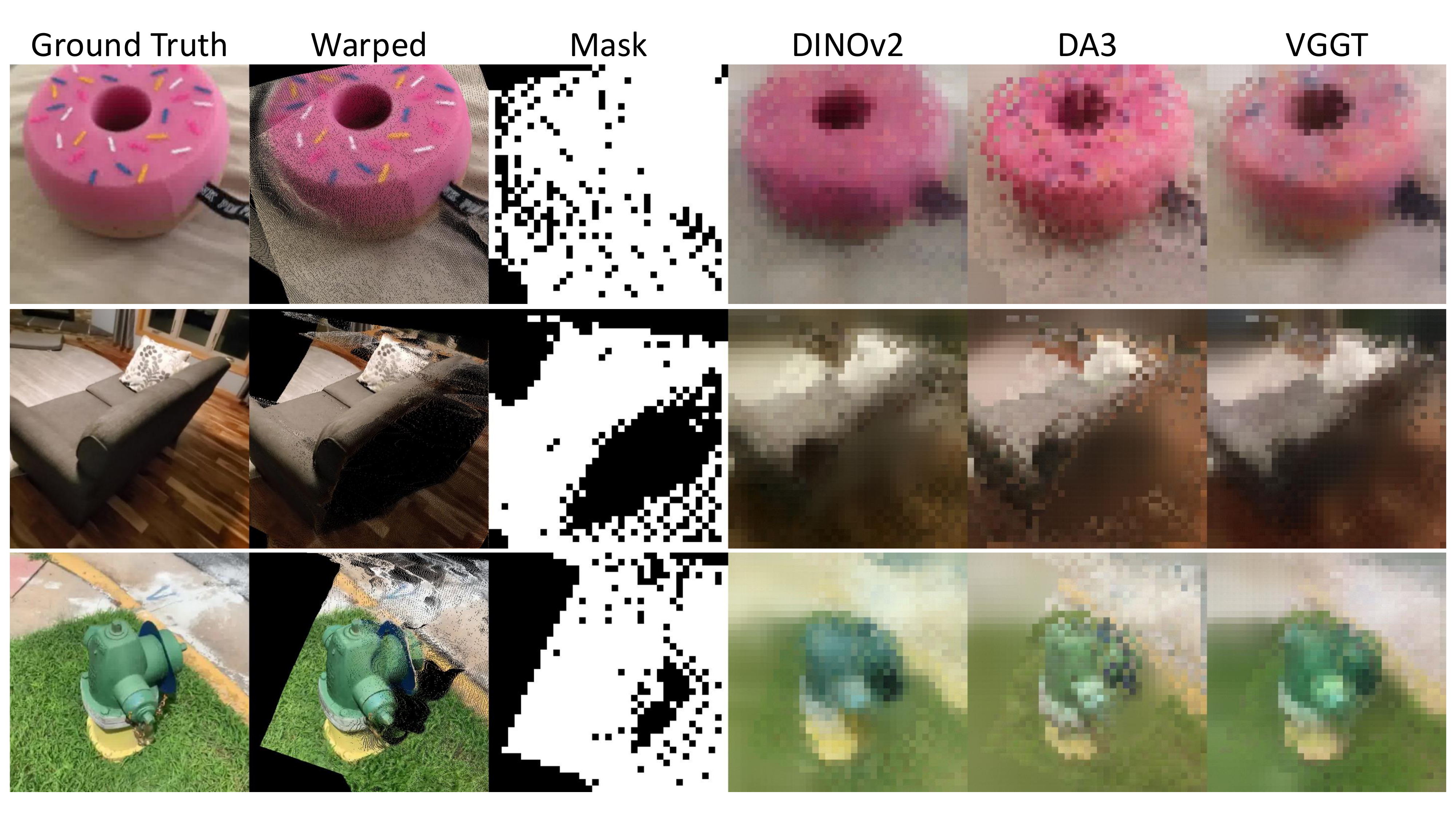

Qualitative results for feature analysis. VGGT features consistently synthesize target-view images with more accurate structure and color compared to other representations.

Method

ReNoV Architecture. Given \(N\) reference images, we extract visual features, dense point clouds, and camera poses using an external representation model (e.g., VGGT, DA3, or DINOv2). These components undergo projected representation conditioning, where reference features and point clouds are projected into the target camera frustum to form warped representation and point-map planes. The reference network aggregates these multi-view inputs by passing them as keys and values to denoising network. Simultaneously, the denoising network receives the projected feature and point cloud planes as direct conditioning, aggregating reference cues to synthesize the novel view image.

Projected Representation Conditioning

We incorporate a geometry-driven conditioning mechanism based on warping. Specifically, we project the reference pointmaps \(\{P_1, \dots, P_N\}\) and the corresponding external representation features \(\{T_1, \dots, T_N\}\) into the target viewpoint \(\pi_{\text{tgt}}\). These projected signals provide spatial priors that guide the diffusion model toward higher-quality generation results. The projected pointmap \(\mathcal{P}^{\Pi}_{\text{tgt}}\) serves as a sparse geometric condition.

Given the observed multiview-consistent nature of geometric external representations, we unproject them into 3D space by anchoring each pixel-level feature to its corresponding 3D coordinate, forming a 3D feature point cloud. This pointcloud is then projected into the target view, yielding a spatially aligned warped feature map. The projected features \(T_{\text{tgt}}^{\Pi}\) and projected pointmap \(X_{\text{tgt}}^{\Pi}\) are provided as input conditions to the denoising network.

Qualitative Results

DTU (Zero-shot) Comparison

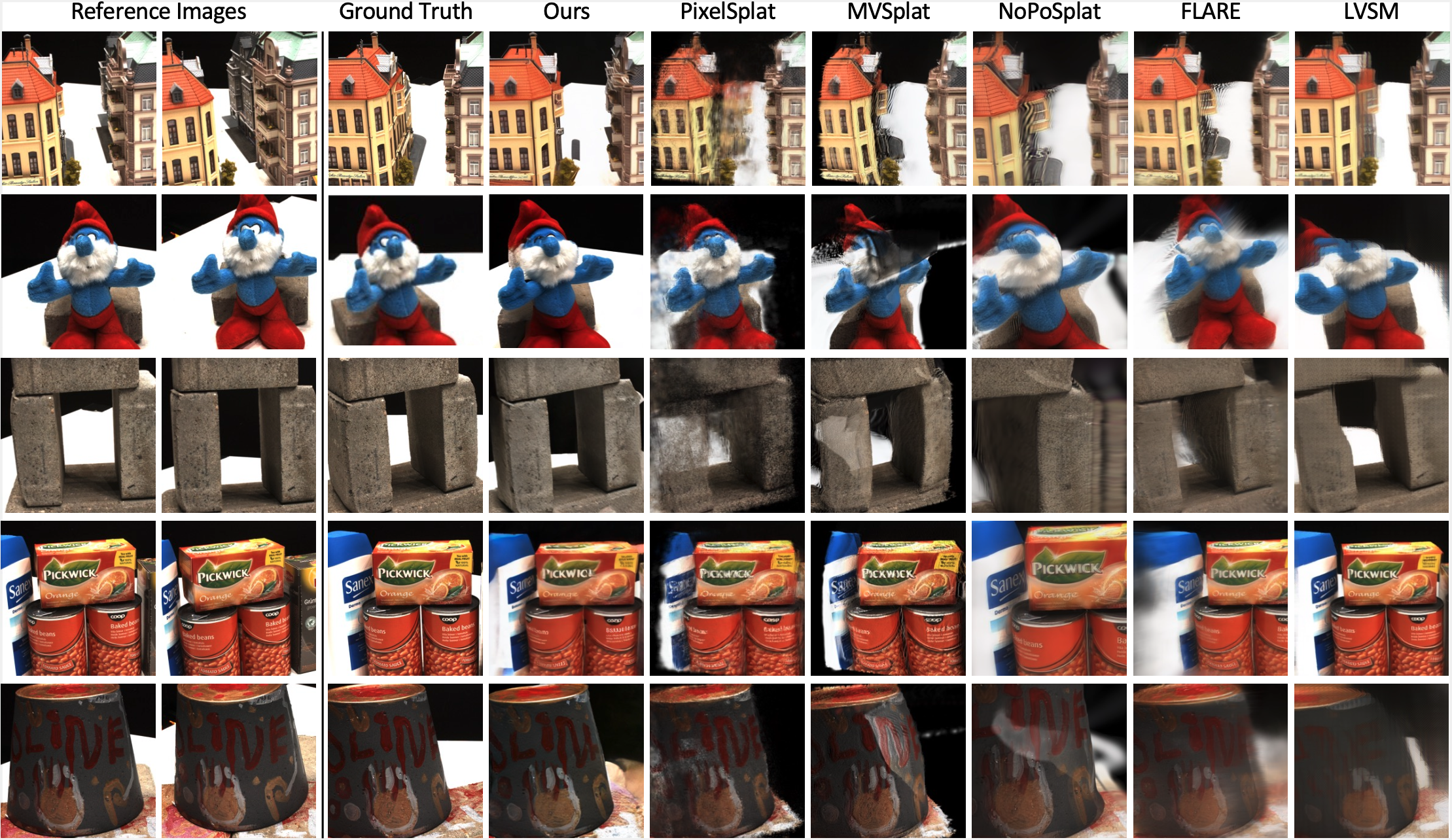

Qualitative results on DTU dataset (Zero-shot evaluation).

RealEstate10K Comparison

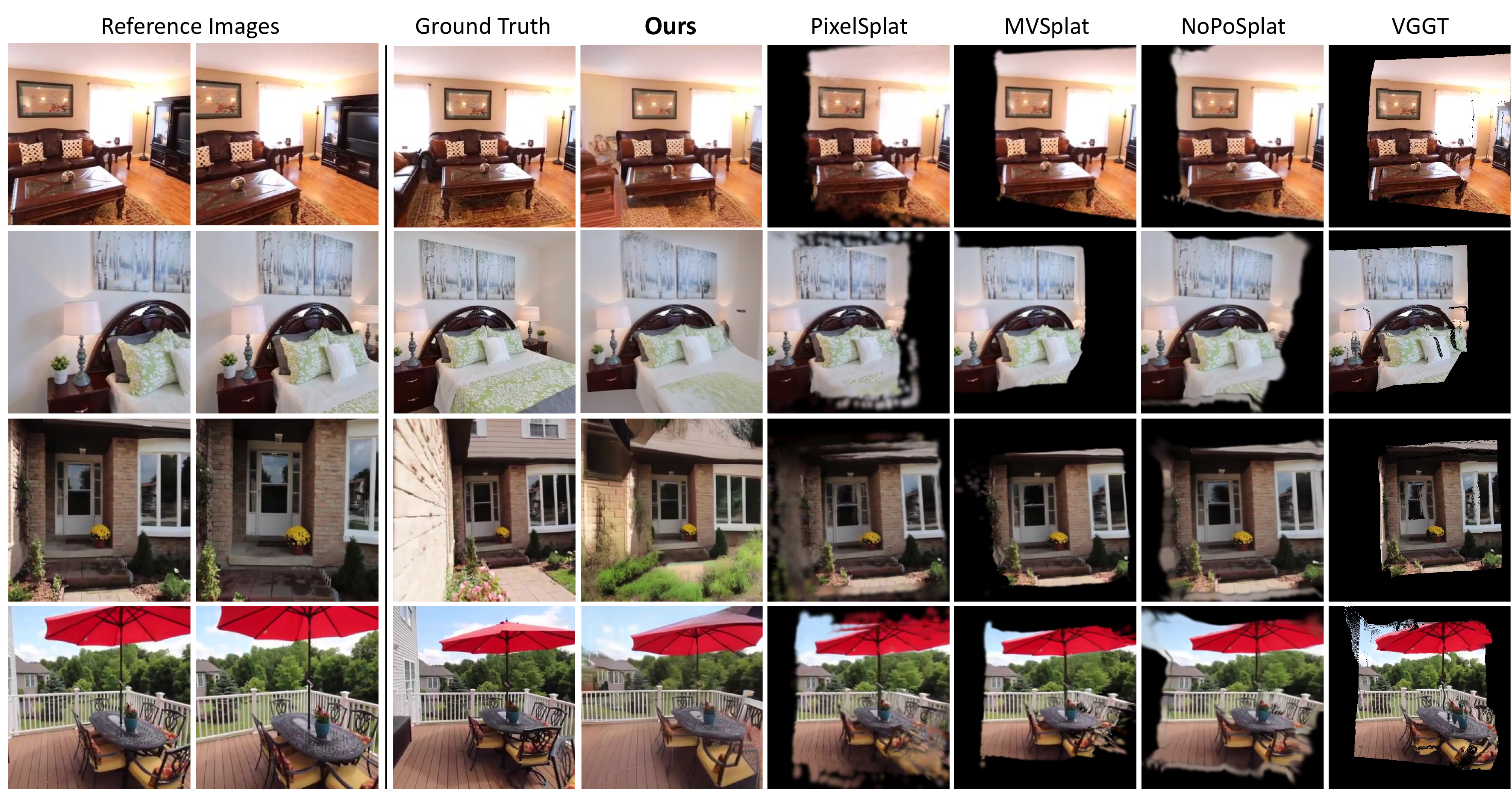

Qualitative results on RealEstate10K dataset.

Quantitative Results

Zero-shot Evaluation on DTU

Views	Method	Pose-free	Far-view Setting			Near-view Setting
Views	Method	Pose-free	PSNR↑	SSIM↑	LPIPS↓	PSNR↑	SSIM↑	LPIPS↓

2-view	PixelSplat	✗	13.03	0.486	0.414	11.57	0.330	0.634
	MVSplat	✗	12.22	0.416	0.423	13.94	0.473	0.385
	NoPoSplat	✓	11.43	0.335	0.599	11.44	0.357	0.576
	FLARE	✗	13.52	0.407	0.525	13.25	0.381	0.502
	LVSM	✗	15.23	0.499	0.415	15.82	0.528	0.346
	ReNoV w/ DINOv2	✓	15.13	0.599	0.304	14.70	0.602	0.277
	ReNoV w/ VGGT	✓	15.45	0.584	0.297	15.38	0.599	0.274
	ReNoV w/ DA3	✓	14.38	0.550	0.303	14.91	0.593	0.259

1-view	LucidDreamer	✓	12.96	0.248	0.385	12.09	0.481	0.419
	GenWarp	✓	8.69	0.253	0.597	9.54	0.298	0.538
	ViewCrafter	✓	14.04	0.390	0.332	13.59	0.382	0.486
	ReNoV w/ DINOv2	✓	15.02	0.579	0.328	14.13	0.574	0.304
	ReNoV w/ VGGT	✓	14.08	0.536	0.355	13.91	0.542	0.333
	ReNoV w/ DA3	✓	14.35	0.534	0.325	14.12	0.550	0.292

In-domain Evaluation on RealEstate10K

Method	PSNR↑	SSIM↑	LPIPS↓
PixelSplat	14.01	0.582	0.384
MVSplat	12.13	0.534	0.380
NopoSplat	14.36	0.538	0.389
ReNoV w/ VGGT (Ours)	17.49	0.598	0.247

Ablation Study

Components	PSNR↑	SSIM↑	LPIPS↓
(a) Warped image only	16.55	0.559	0.260
(b) Warped image + Pointmap	16.93	0.594	0.243
(c) Pointmap + VGGT Feature	17.50	0.598	0.247

Robustness to Degraded Geometry

Removal %	PSNR↑	SSIM↑	LPIPS↓
0% (Original)	12.04	0.509	0.371
30% removal	11.89	0.507	0.366
50% removal	11.92	0.507	0.367

Performance remains stable even with significant point cloud degradation.

Citation

@article{kwak2026renov, title={Projected Representation Conditioning for High-fidelity Novel View Synthesis}, author={Kwak, Minseop and Kwon, Minkyung and Choi, Jinhyeok and Park, Jiho and Kim, Seungryong}, journal={arXiv preprint}, year={2026} }
