TL;DR: Seg4Diff analyzes internal mechanisms of multi-modal diffusion transformers to identify semantic grounding expert layers that naturally yield high-quality zero-shot segmentation masks, then enhances them through lightweight LoRA fine-tuning to improve both segmentation and generation quality.

Overview

We introduce Seg4Diff, a systematic framework designed to analyze and enhance the emergent semantic grounding capabilities of multi-modal diffusion transformer (MM-DiT) blocks in text-to-image diffusion transformers (DiTs). Here, semantic grounding expert refers to a specific MM-DiT block responsible for establishing semantic alignment between text and image features.

Analysis

We conduct an in-depth analysis of the joint attention mechanism in MM-DiT models to understand how text and image tokens interact. We characterize the distribution of attention scores to discover active cross-modal interaction, and complement this with attention feature similarity measures to assess which modality exerts greater influence on output representations.

Attention Score Analysis

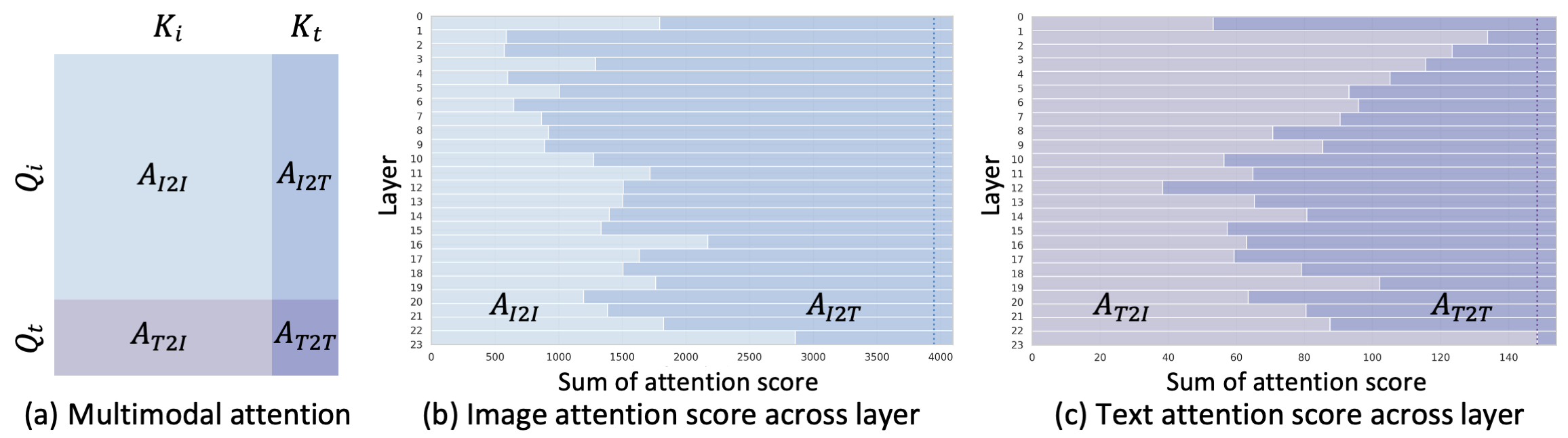

Multi-modal attention mechanism: (a) Conceptual visualization of the attention map. (b–c) Ratios of attention assigned to image vs. text tokens. The dotted line denotes the ratio under uniform attention. Higher cross-modal proportions are observed in I2T and T2I attention.

Attention Feature Analysis

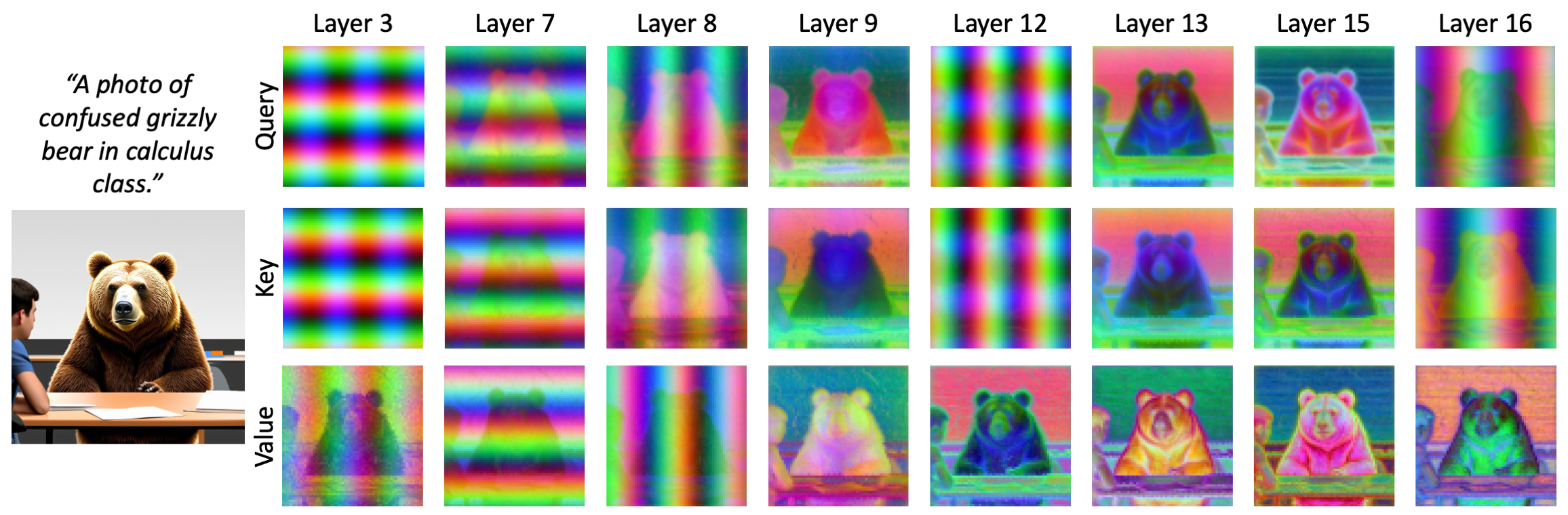

PCA visualization of query, key and value projections. PCA results demonstrate that some layers exhibit strong positional bias, whereas some layers show clear semantic groups.

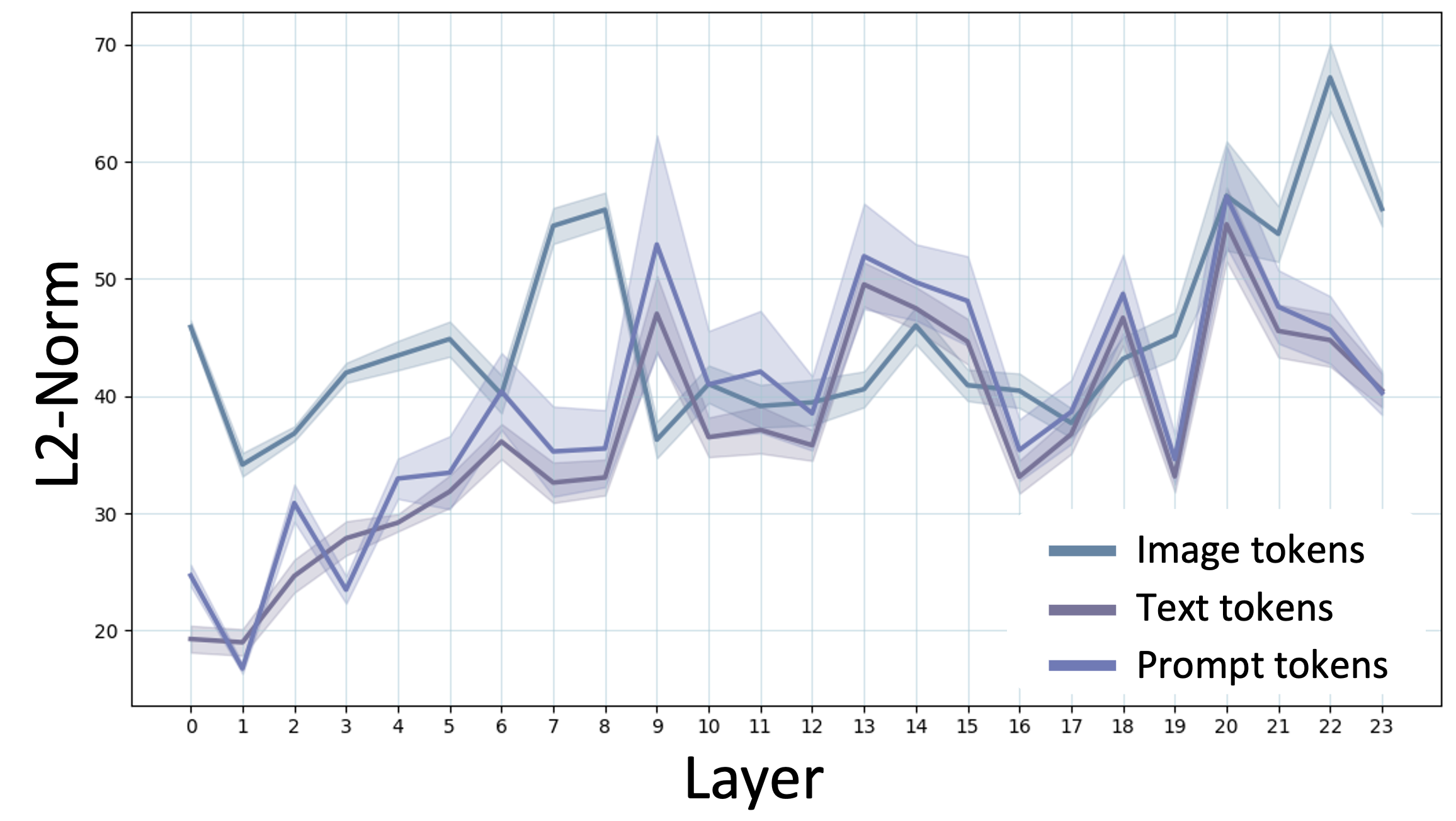

Attention feature norm analysis. The L2 norm of the value projection for image and text tokens reveals that certain layers exhibit significantly stronger value magnitudes for text tokens compared to image tokens.

Essential Role of I2T Attention in Text-to-Image Generation

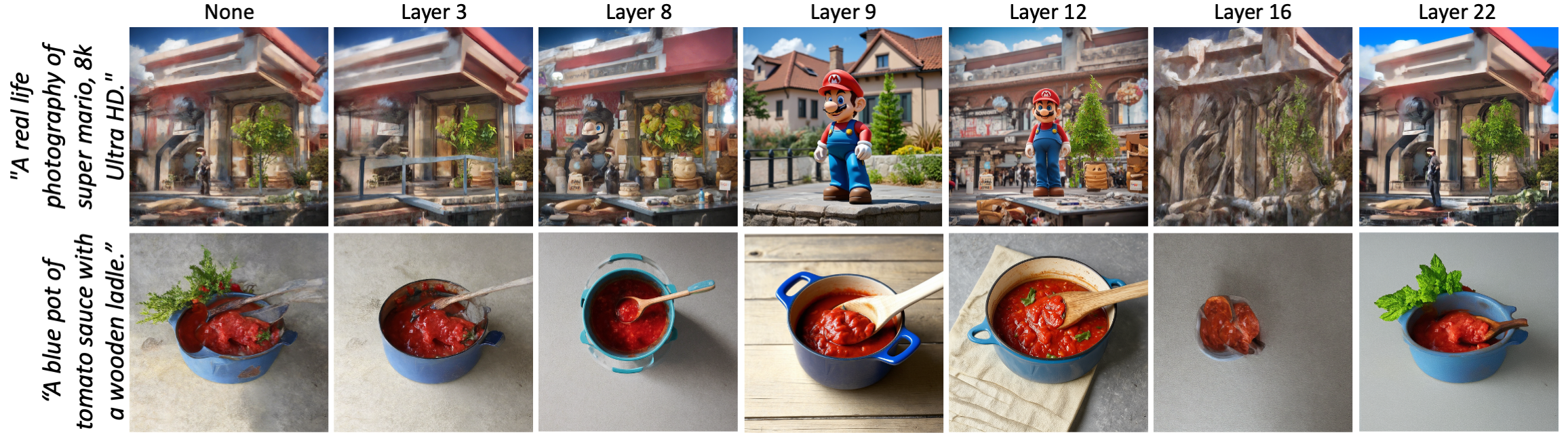

Effect of I2T attention perturbation. Blurring the I2T regions of specific attention layers severely disrupts text–image alignment, showing that these layers are crucial for injecting semantic content into images.

Effect of perturbed I2T guidance. By turning this effect into a simple guidance strategy, we achieve images with higher fidelity and stronger alignment to the prompt.

The analysis reveals that specific layers consistently align textual semantics with contiguous image regions, demonstrating emergent semantic grounding capability. These layers naturally yield high-quality zero-shot segmentation masks without explicit training for segmentation tasks.

Zero-shot OVSS Framework

We propose a zero-shot framework for semantic grounding in multi-modal diffusion transformers. Given an input image and text prompt, we extract I2T attention to generate a zero-shot segmentation mask.

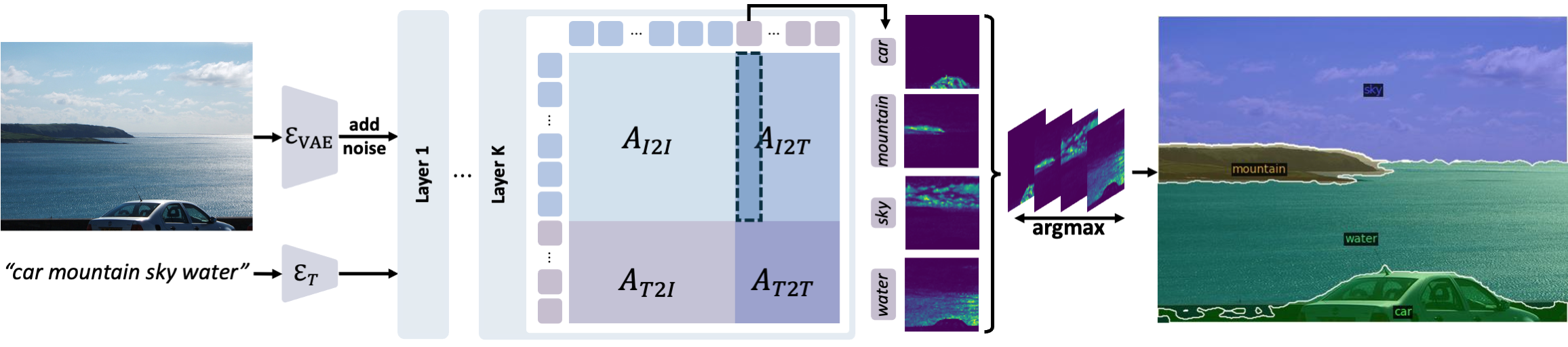

Open-vocabulary semantic segmentation scheme in our framework. We generate segmentation masks by interpreting the I2T attention scores, where the score map for each text token serves as a direct measure of image-text similarity to produce the final prediction.

Open-vocabulary semantic segmentation performance across layers. Semantic grounding quality varies across MM-DiT layers, peaking in the middle blocks and specifically at the 9th layer. This trend is similar to what we've found in previous analysis, where semantic grounding is stronger in certain layers. We refer to those layer as semantic grounding expert layers.

Decomposing Multi-modal Attention

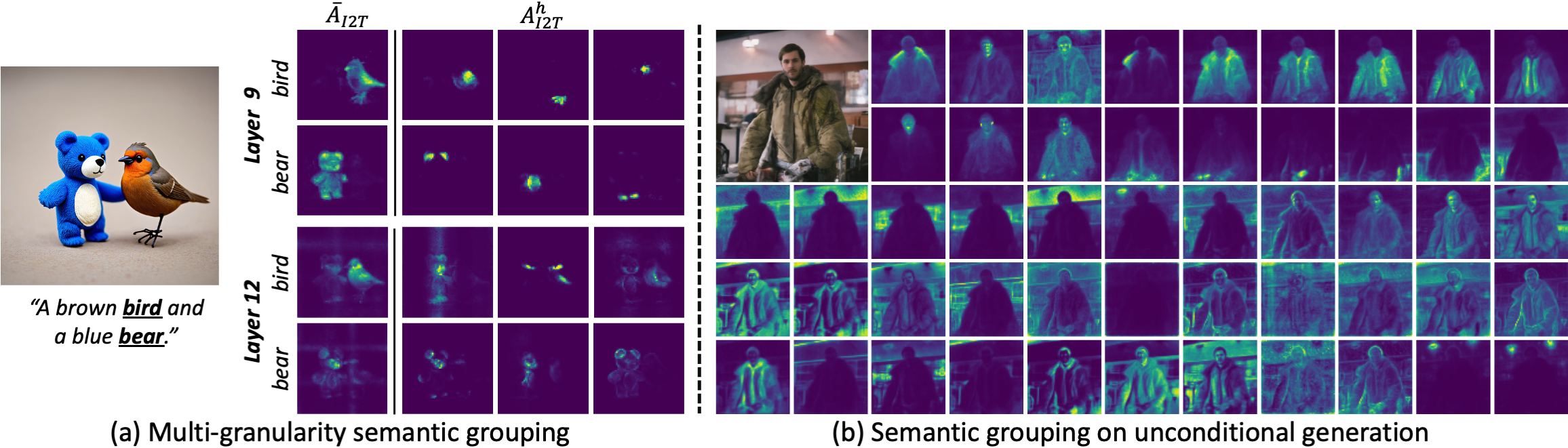

Deeper analysis on multi-modal attention mechanism. (a) multi-granularity behavior of token-level and head-level attention, and (b) emergent semantic grouping on <pad> tokens in unconditional generation scenario.

Mask Alignment for Segmentation and Generation (MAGNET)

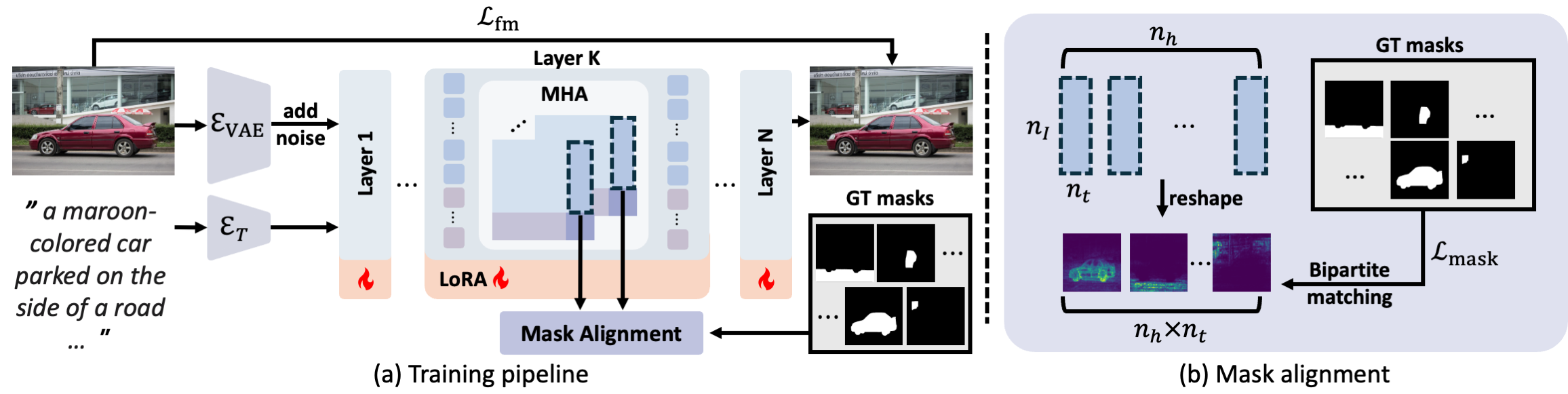

Lightweight fine-tuning pipeline via mask alignment. We introduce a simple yet effective mask alignment for segmentation and generation (MAGNET) strategy that strengthens the I2T attention maps in the semantic grounding expert layer during additional diffusion fine-tuning with a LoRA adapter.

Experiments

We evaluate Seg4Diff on multiple benchmarks to demonstrate the effectiveness of our method on both segmentation and generation.

Seg4Diff for Segmentation

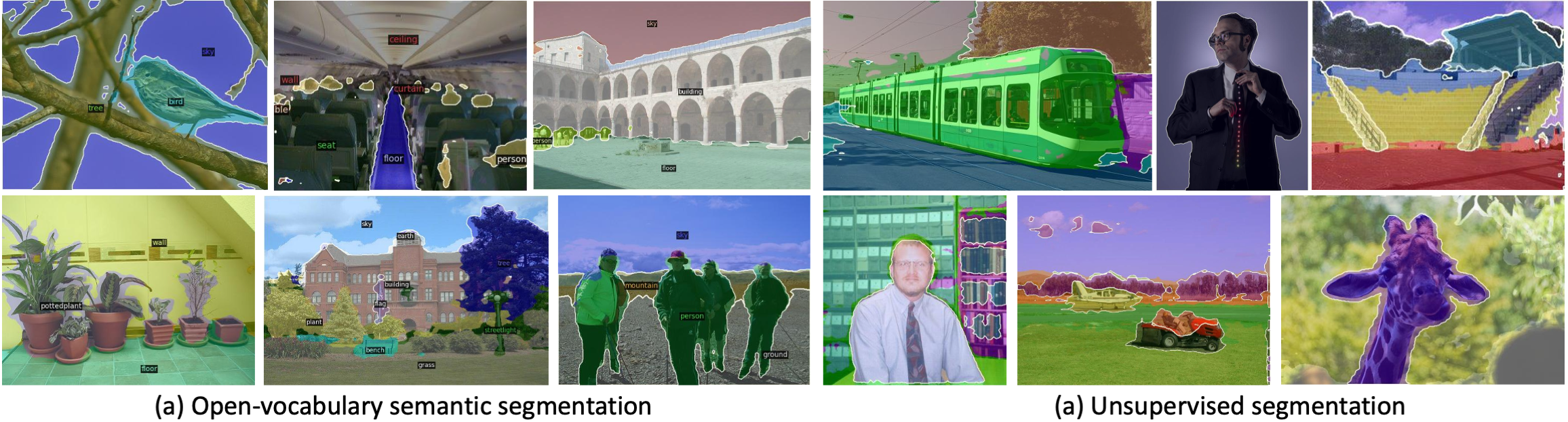

Qualitative results of Seg4Diff on segmentation tasks.

Model	Arch.	Train.	VOC20	Object	PC59	ADE	City
ProxyCLIP	CLIP-H/14	-	83.3	49.8	39.6	24.2	42.0
CorrCLIP	CLIP-H/14	-	91.8	52.7	47.9	28.8	49.9
DiffSegmenter	SD1.5	-	66.4	40.0	45.9	24.2	12.4
iSeg	SD1.5	-	82.9	57.3	39.2	24.2	24.8
Seg4Diff	SD3	-	89.2	62.0	49.0	34.2	26.5
Seg4Diff	SD3.5	-	86.1	57.8	43.4	30.7	23.8
Seg4Diff	Flux.1-dev	-	83.1	50.6	38.2	23.9	17.1
Seg4Diff + MAGNET	SD3	SA-1B	89.1	62.0	49.1	34.7	25.4
Seg4Diff + MAGNET	SD3	COCO	89.8	62.9	51.2	35.2	26.0

(a) Open-vocabulary semantic segmentation performance. Cross-modal alignment in the I2T attention maps of the semantic grounding expert layer yields competitive results, further enhanced by mask alignment.

Model	Arch.	Train.	VOC21	PC59	Object	Stuff-27	City	ADE
ReCO	CLIP-L/14	-	25.1	19.9	15.7	26.3	19.3	11.2
MaskCLIP	CLIP-B/16	-	38.8	23.6	20.6	19.6	10.0	9.8
MaskCut	DINO-B/8	-	53.8	43.4	30.1	41.7	18.7	35.7
DiffSeg	SD1.5	-	49.8	48.8	23.2	44.2	16.8	37.7
DiffCut	SSD-1B	-	62.0	54.1	32.0	46.1	28.4	42.4
Seg4Diff	SD3	-	54.9	52.6	38.5	49.7	24.2	44.9
Seg4Diff	SD3.5	-	52.3	52.9	36.8	47.1	24.2	41.5
Seg4Diff + MAGNET	SD3	SA-1B	55.1	52.8	39.0	50.8	24.2	45.0
Seg4Diff + MAGNET	SD3	COCO	56.1	53.5	38.8	53.5	24.4	45.4

(b) Unsupervised segmentation performance. Although not specifically designed for unsupervised semantic segmentation, exploiting the emergent semantic grouping of <pad> tokens in the I2T attention maps achieves competitive results.

Seg4Diff for Image Generation

Qualitative results of Seg4Diff across different prompts.

Qualitative results with atteention visualization

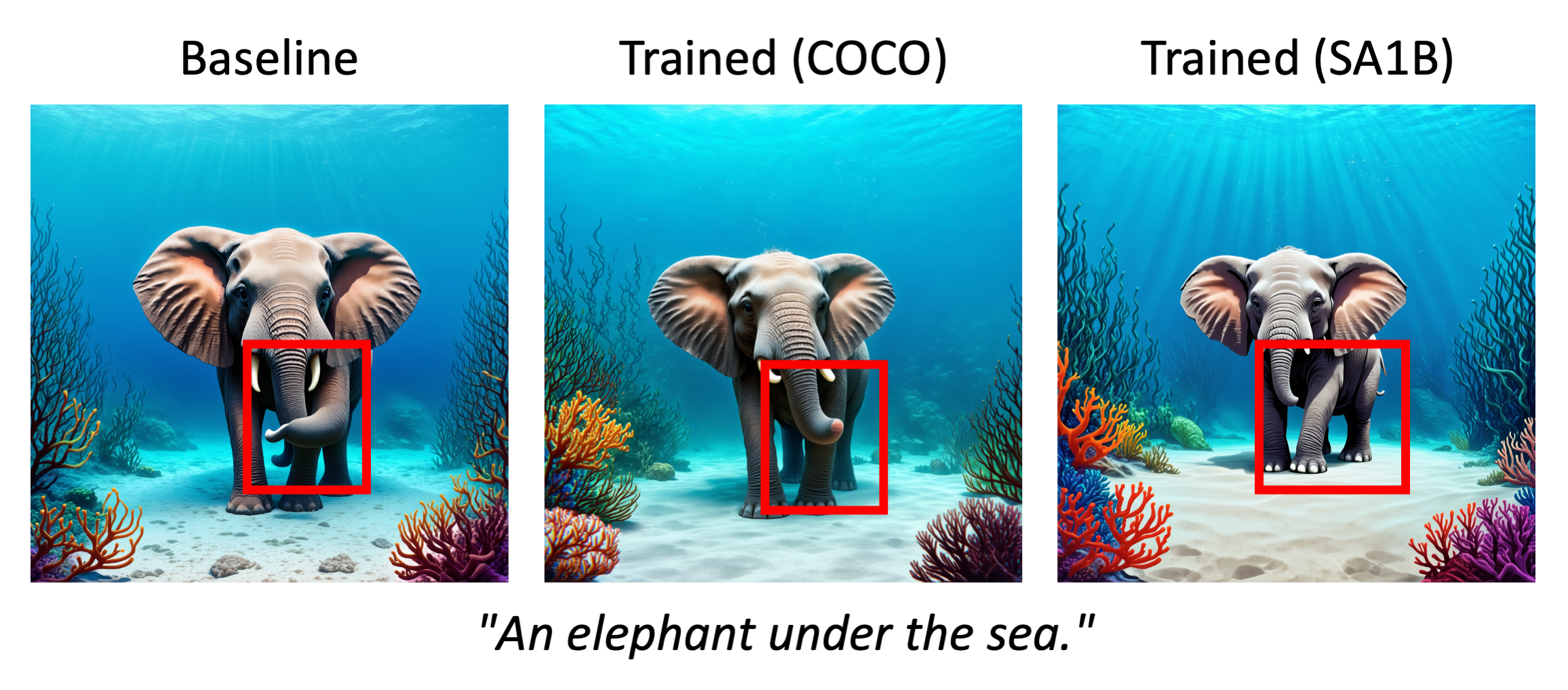

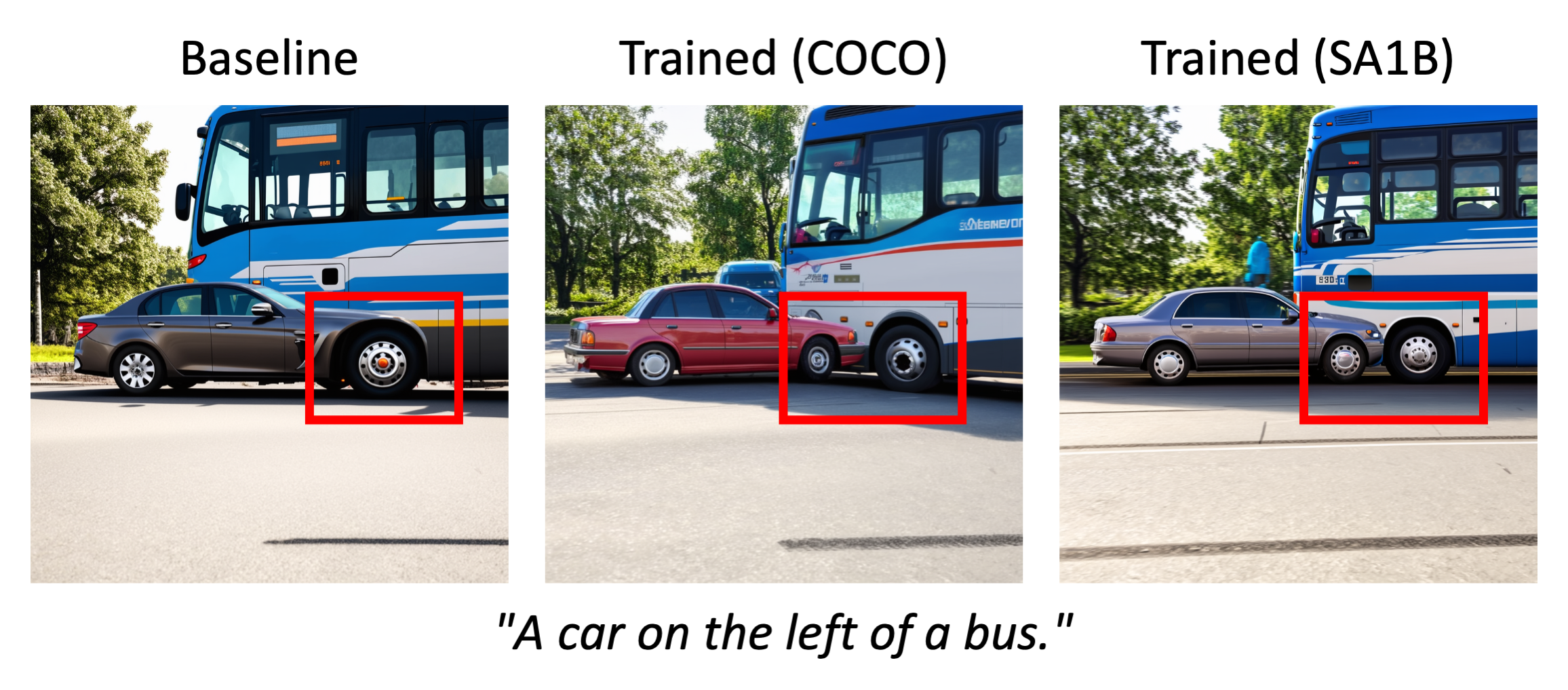

Qualitative results of Mask Alignment. Mask alignment improves structural coherence and alignment between image and text.

Method	Training	Pick-a-Pic	COCO	SA-1B	Mean
Baseline	--	27.0252	26.0638	28.3422	27.1437
+ MAGNET	SA-1B	27.0547	26.2318	28.4476	27.2447
+ MAGNET	COCO	27.0409	26.2319	28.5553	27.2760

(a) CLIPScore on text-to-image generation benchmarks. Mask alignment consistently improves alignment with text prompts across various datasets.

Method	Training	Attribute binding			Object relationships			Num.	Comp.
Method	Training	Color	Shape	Texture	2D	3D	non	Num.	Comp.
Baseline	--	0.7864	0.5644	0.7200	0.2435	0.3318	0.3124	0.5566	0.3719
+ MAGNET	SA-1B	0.7836	0.5679	0.7252	0.2330	0.3151	0.3113	0.5460	0.3709
+ MAGNET	COCO	0.7919	0.5687	0.7260	0.2301	0.3234	0.3120	0.5584	0.3735

(b) T2I-Compbench++ performance. Mask alignment enhances attribute binding, object relationships, and compositional understanding compared to the baseline.

Conclusion

In this work, we introduce Seg4Diff, a systematic analysis framework for multi-modal diffusion transformers that identifies semantic grounding expert layers capable of producing high-quality zero-shot segmentation masks. Our comprehensive analysis reveals that semantic alignment is an emergent property of diffusion transformers and can be selectively amplified through lightweight LoRA fine-tuning to improve both dense recognition and generative performance.

Citation

If you use this work or find it helpful, please consider citing:

@misc{kim2025seg4diffunveilingopenvocabularysegmentation,
    title={Seg4Diff: Unveiling Open-Vocabulary Segmentation in Text-to-Image Diffusion Transformers},
    author={Chaehyun Kim and Heeseong Shin and Eunbeen Hong and Heeji Yoon and Anurag Arnab and Paul Hongsuck Seo and Sunghwan Hong and Seungryong Kim},
    year={2025},
    eprint={2509.18096},
    archivePrefix={arXiv},
    primaryClass={cs.CV},
    url={https://arxiv.org/abs/2509.18096},
}

Seg4Diff: Unveiling Open-Vocabulary Segmentationin Text-to-Image Diffusion Transformers

NeurIPS 2025
